KEB 0560S

KEB 0560S

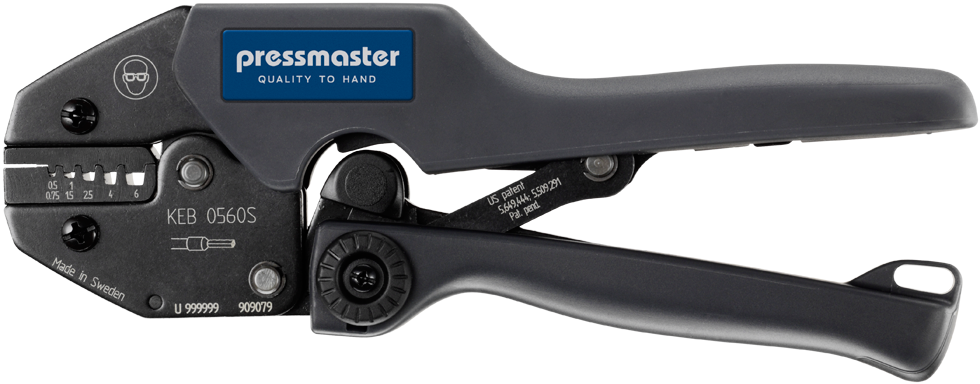

KEB-0560S is a crimping tool for endsleeves according to DIN 46228, 0.5 - 6.0 mm² / AWG 22-10, side feeded, Trapez-Crimp. Short and long handle available.

  • High strength, through hardened alloy steel construction
  • Unique mechanism significantly reduces hand force requirement over competing crimping tools
  • Versatile and easy to customize for right hand or left hand users.
  • Non-slip pad holds tool in place when leveraging on a work surface
  • Full cycle crimp mechanism to ensure consistent, reliable crimp
  • Ratchet release mechanism to clear miscrimps and obstructions
  • Precision eccentric adjustment for consistent performance and ability to calibrate
  • Hole in handle allows attachment of safety strap
  • Each tool has a unique serial number for traceability




204 mm/8"
22 mm/0.87"
76 mm/2.99"
505 gr/1.11 lb
0.5-6 mm2 / AWG 22-AWG 10

0,25-0,75 mm2/1-1,5 mm2/2,5 mm2/4 mm2/6 mm2

AWG 24-20/AWG 18-16/AWG 14/AWG 12/AWG 10
For endsleve connectors, both uninsulated and insulated.
