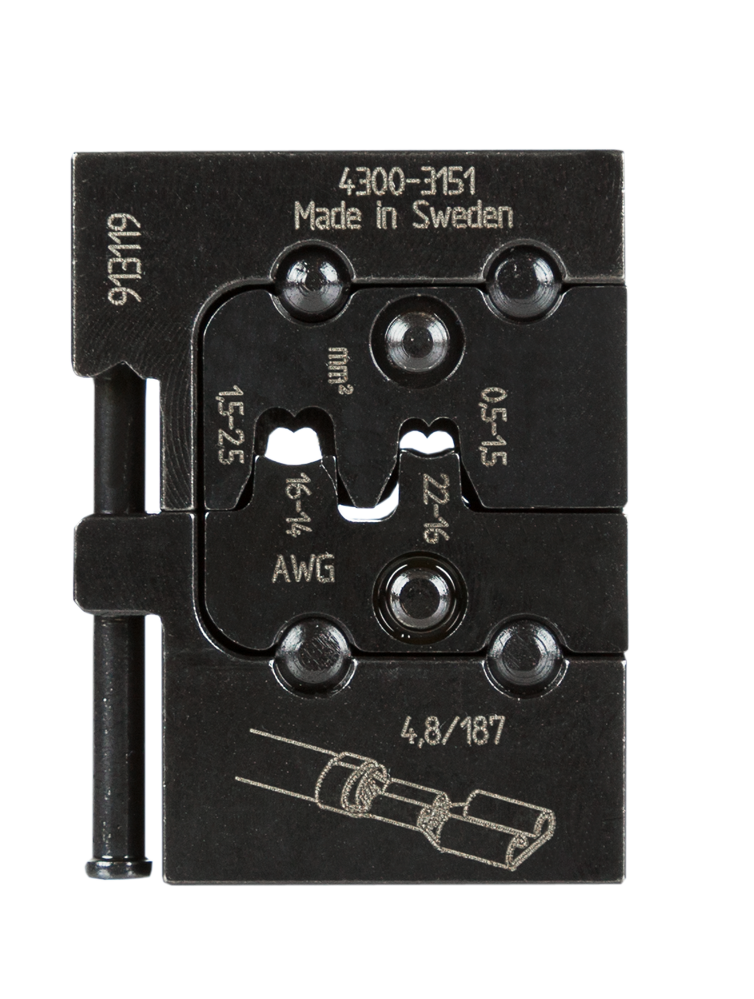

Mobile die set/4300-3151/AAA

Mobile die set for non insulated open barrel connectors 0.5-2.5 mm²/AWG 22-14. This is one of the interchangeable crimp die sets for the MCT frame. A wide range of crimp dies enables the user to cover all applications in just one tool frame.

• Reliable – crimping performance is consistent and accurate with a parallel action stroke.
• Easy to use – designed to give the user full visibility of the crimping process. Handles are shaped for low effort crimping with a one or two hand grip.
• Versatile – an easy-access release function allows fast and simple exchange of crimp dies. No special tools needed.
• Weight and size of the tool are optimized to make it easy to carry. Dies are kept in pairs and delivered in a modular reusable box.
• Comfortable – the entire tool frame is covered in smooth plastic for comfortable use, also for outdoor operations in all weather conditions
• Hole in handle allows attachment of safety strap

The part number is a reference to the die set without frame.

Following dies are also available:

4300-3127 (endsleeves), 4300-3153 (endsleeves), 4300-3154 (endsleeves), 4300-3150 (open barrel connectors), 4300-3146 (open barrel connectors), 4300-3128 (insulated connectors), 4300-3129 (insulated connectors), 4300-3262 (heat shrink connectors), 4300-3258 (heat shrink connectors), 4300-3139 (uninsulated connectors), 4300-3137 (uninsulated connectors), 4300-3142 (uninsulated connectors), 4300-3147 (turned pin connectors), 4300-3148 (turned pin connectors), 4300-3136 (coaxial connectors) , 4300-3141 (coaxial/fiberoptic), 4300-3140 (coaxial connectors), 4300-3138 (coaxial connectors), 4300-3144 (RJ45 connectors), 4300-3132 (RJ11 connectors),
